For the Spring 2020 DESIGN 166 class at the University of Washington, I created a design for a personal-use emergency food/drink spill kit out of Bristol board. This page details the design and prototyping process for the project.
Idea development
![](https://cdn.myportfolio.com/f16010f4-1fd6-48cb-b92d-1dd0c3950059/b61feeec-f910-4d85-8638-2120912e29b7_rw_1920.jpg?h=0ad5fdcaaa3aee9e1d5128a3139af626)

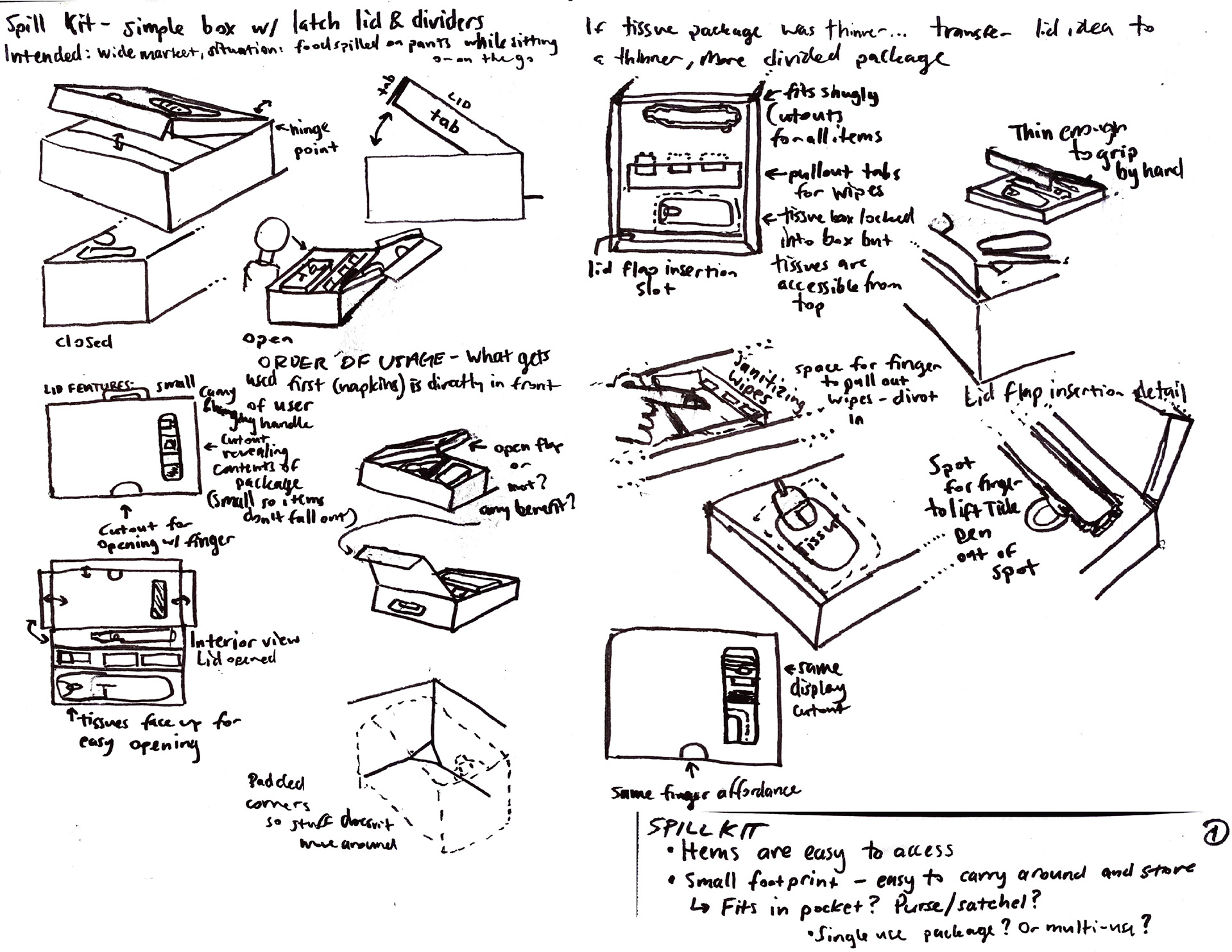

Initial product, form, and user interaction sketches
![](https://cdn.myportfolio.com/f16010f4-1fd6-48cb-b92d-1dd0c3950059/1a28635a-b4ed-4c05-9580-ebae4f6c9dcd_rw_1200.jpg?h=798b081552c32da04970e8d7396d2e79)
Storyboard, developing use case ideas for the package
Prototyping and Iteration
![](https://cdn.myportfolio.com/f16010f4-1fd6-48cb-b92d-1dd0c3950059/ae6011a1-aa17-4ff7-bf35-18fa604f796f_rw_1920.jpg?h=0107d73009dab49c287229fe90bc92d1)

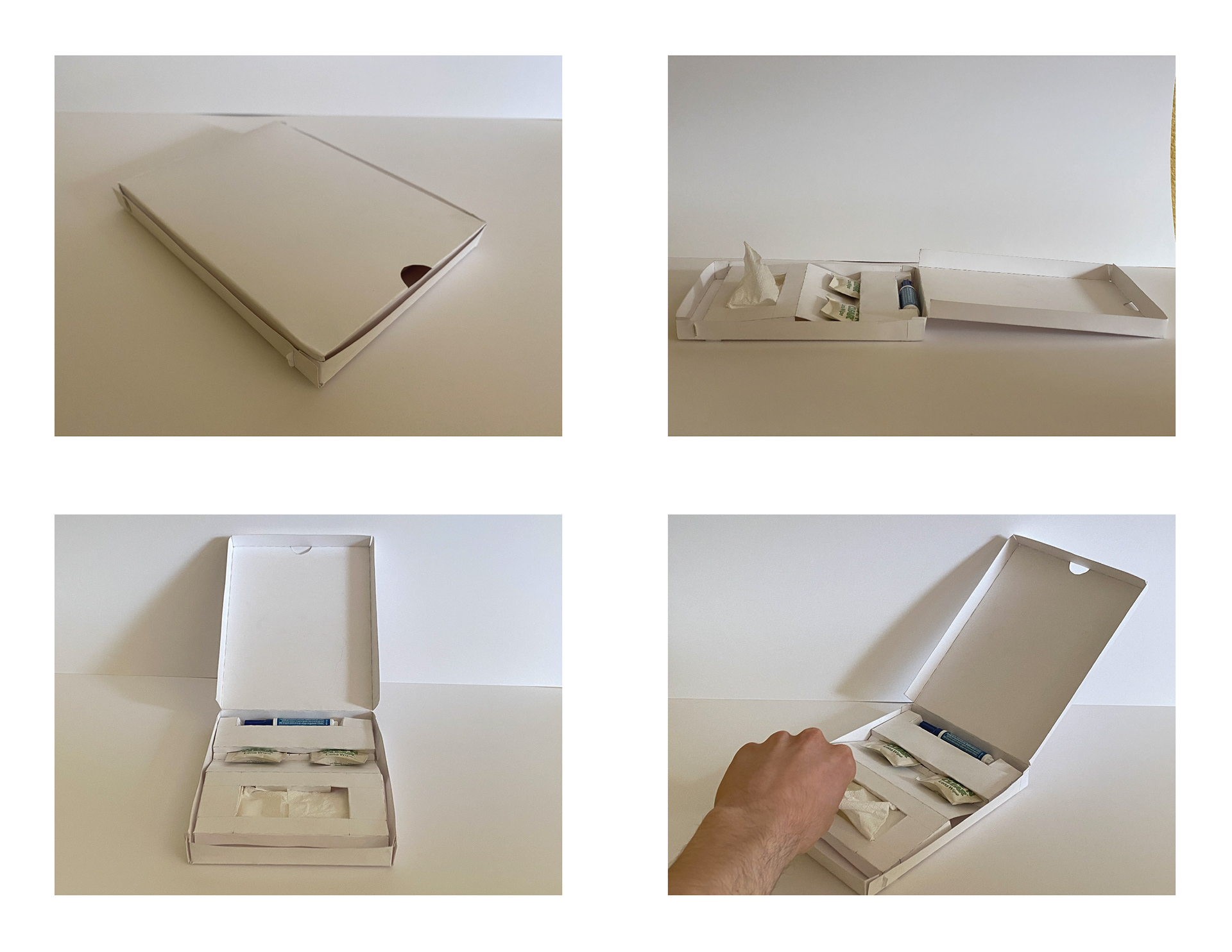

First prototype, created as a proof-of-concept for a two-piece packaging design
![](https://cdn.myportfolio.com/f16010f4-1fd6-48cb-b92d-1dd0c3950059/86c980c0-563c-407a-904d-667dc31462f4_rw_1920.jpg?h=1324b624662e558ce664d50c8c521198)

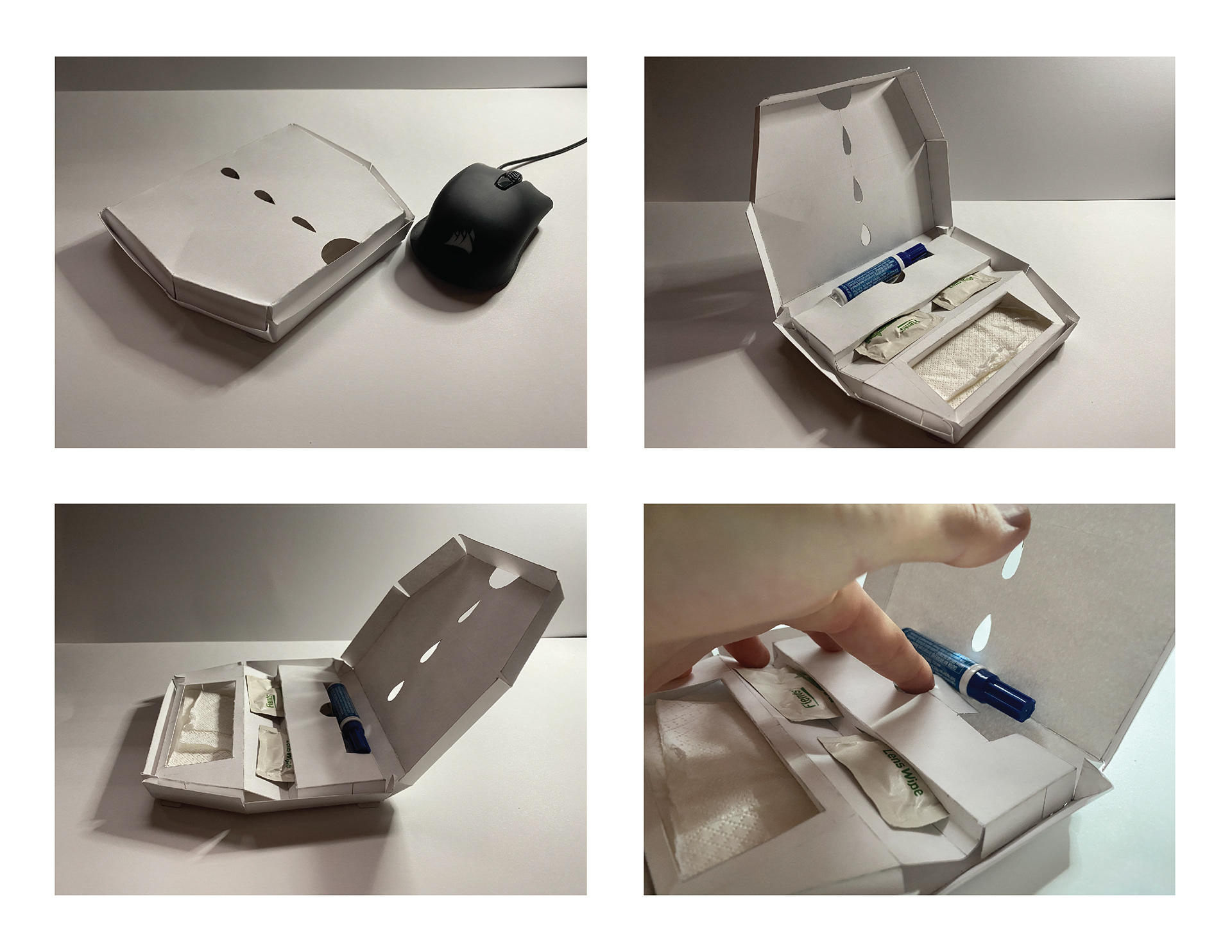

Second prototype, created to show possible decrease in material footprint and experiment with outer box construction
Final Product
![](https://cdn.myportfolio.com/f16010f4-1fd6-48cb-b92d-1dd0c3950059/7b640fda-5c57-4fda-ac49-27eb60f05912_rw_1920.png?h=42e7a0f7ebc44d3a5a44daed40e043d1)

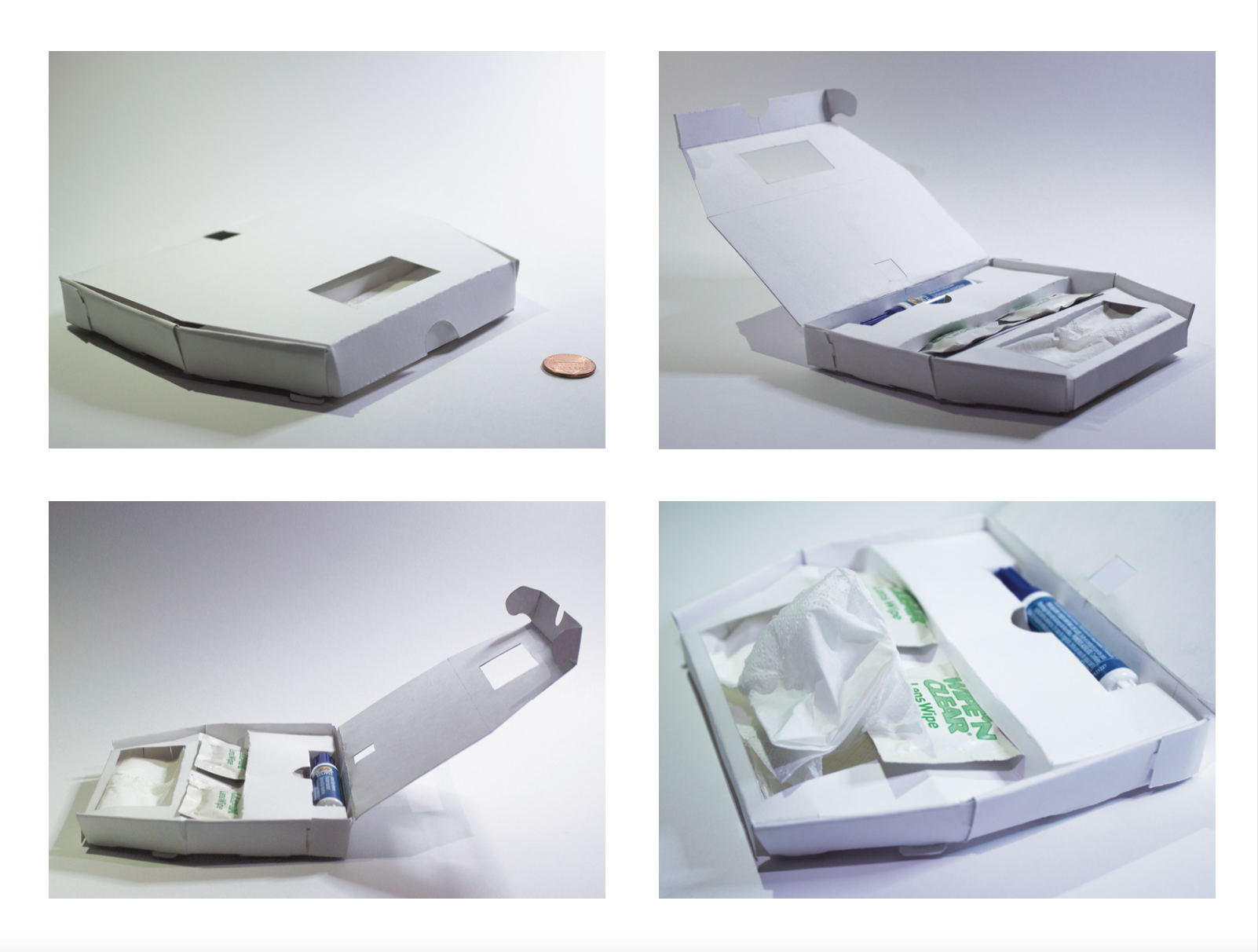

Final prototype
![](https://cdn.myportfolio.com/f16010f4-1fd6-48cb-b92d-1dd0c3950059/2d364706-2fc1-4647-9c54-d20176575556_rw_1200.png?h=d44c7e3772542dea8e2f8a4a8d42a251)

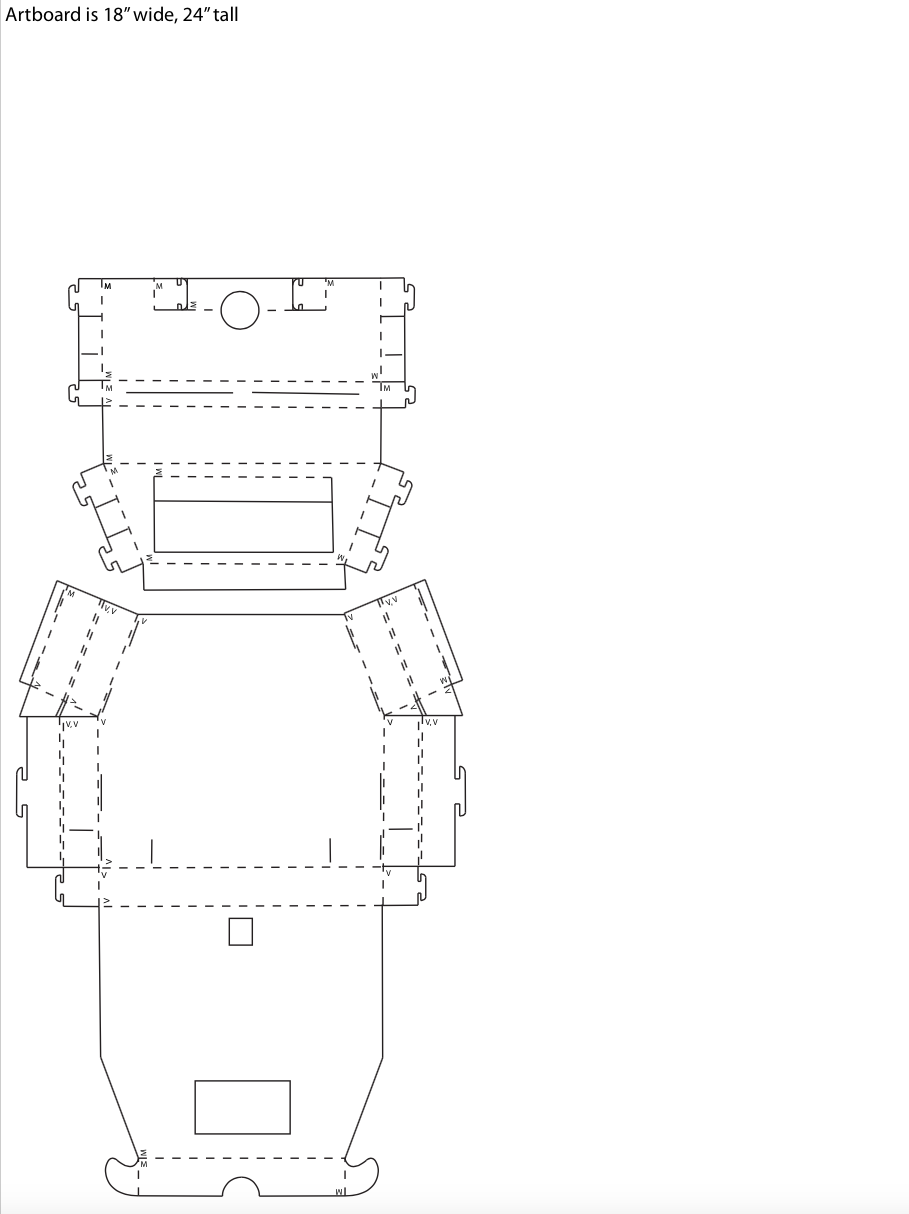

Two-piece package design shown on 18"x24" flat footprint (maximum allowed for project) and mountain/valley folds labeled
